TASK 12: DESIGN DEVELOPMENT FOR ASSIGNMENT 3

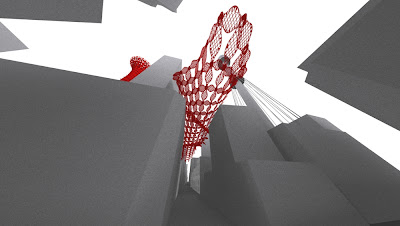

FINAL POSTER // IMAGES OF FINAL DIGITAL MODEL // RENDERS OF ITERATIONS //HIGH QUALITY IMAGE OF DESCRIPTION FILE WITH COMMENTS // HIGH QUALITY IMAGE OF DESCRIPTION FILE WITHOUT COMMENTS:
TASK 11: DESIGN DEVELOPMENT FOR ASSIGNMENT 03
MODEL FOR LASER CUTTING // DESCRIPTION FILE // IMAGES OF COMPLETE LASER CUTTING FILES // DRAFT POSTER:
TASK 10: ASSIGNMENT 03 DESIGN DEVELOPMENT
DESCRIPTION FILE // GEOMETRY // LASER CUTTING FILE // LASER CUT TEST
THOUGHTS: ON LASER CUTTING:
For my test run I chose to go with 1mm white card, thinking there'd be enough flex in each piece to form the shape below. I measured the width of the smallest cable tie (2.5mm) and in Grasshopper I made the holes at every junction 4mm, just to be safe and also allow for a bit wiggle room so each piece could make the overall shape. I was happy that the tags system worked.

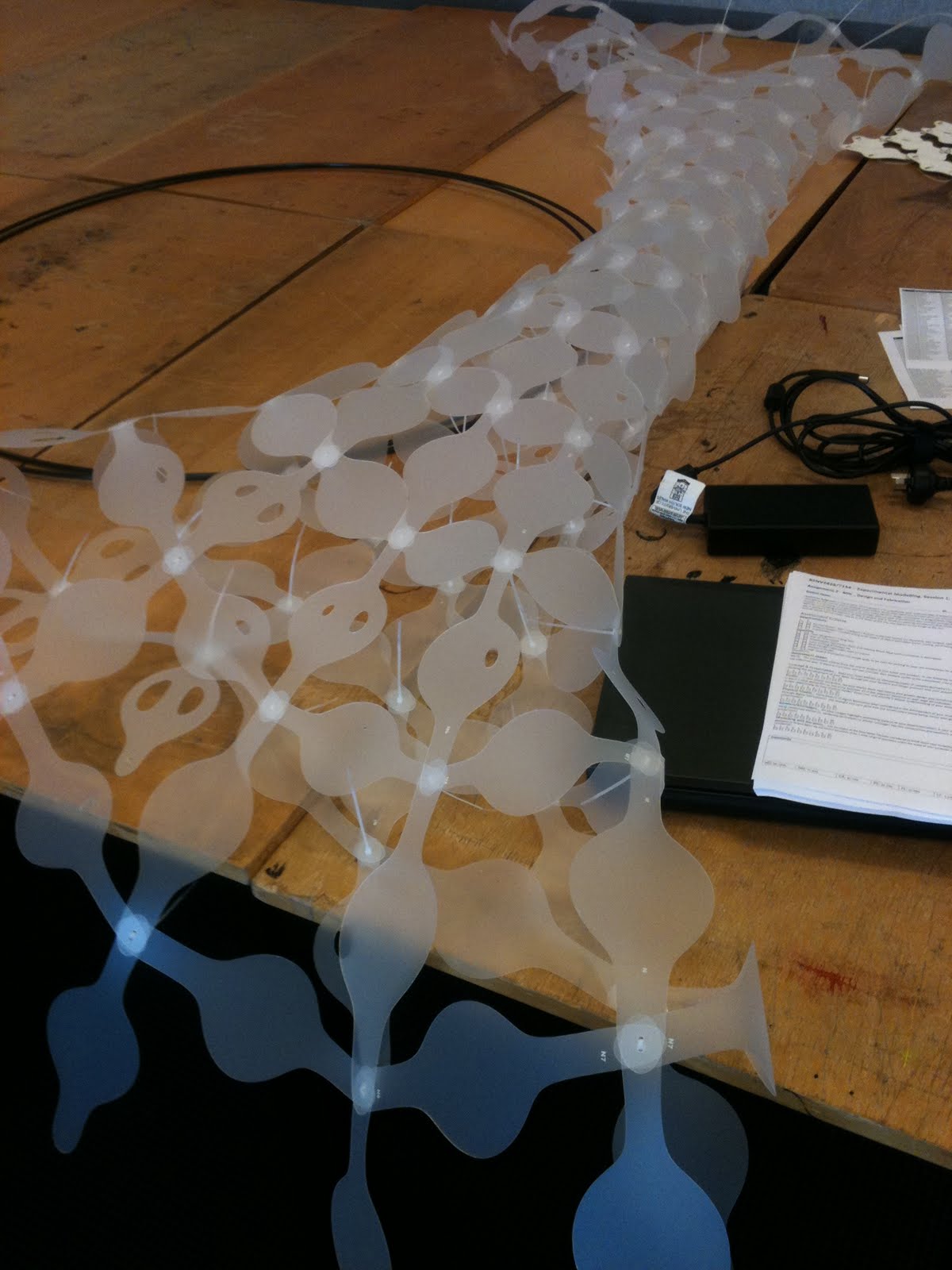

This dry run gave me the confidence to go bigger with a more ambitious shape, it made me realise I needed a more flexible material - polypropylene - and also that my holes needed to come down in size because the 1.5mm of wiggle room was too much and my pieces weren't holding together as tightly as they could have been.
